High Efficiency Mineral Processing Equipment Electromagentic Vertical Ring Separator

Brand Name : WJD

Certification : ISO9001

Place of Origin : Foshan, China

Model Number : Mineral Processing Equipment

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 sets per month.

Delivery Time : 8 working days after receive deposit payment

Packaging Details : Standard Packing

Production Capacity : 0.05~250 t/h

Brand : WJD

Type : Vertical Ring Separator

Application : Non-metallic minerals, low intensity magentic minerals

Place of origin : Foshan,China

Condition : New

After sales service : Engineers available to service machinery oversea

Contact Now

High Efficiency Mineral Processing Equipment Electromagentic Vertical Ring Separator

Product description:

The High Efficiency Mineral Processing equipment Electromagentic Vertical Ring Separator sloves the technical problem that the flat ring strong magentic separator and the flat ring high gradient magnetic medium are easy to block. the background magentic field strength is high, the magentic field gradient is high, the enrichment ratio is large, and the ore size is the advantage of strong concentration and grade fluctuation adaptability, intelligent operation control, etc., achieve the advantages of high recovery rate in sorting weak magentic ore.

The main technical parameters:

Model	WJD-LH1500(1T)	WJD-LH1500(1.3T)	WJD-LH2000(1T)W	WJD-LH2000(1.3T)	WJD-LH2500(1.3T)
Magnetic intensity(GS)	10000	13000	10000	13000	13000
Max. amps(A)	1350	1350	1600	1600	1600
Max coil power(KW)	47	54	60	83	103
Cooling method	Water cooling	Water cooling	Water cooling	Water cooling	Water cooling
Ring diameter(MM)	1500	1500	2000	2000	2500
Capacity(T/H)	20-30	20-30	50-80	50-80	75-95
Dimension(MM)	370030103410	370030103410	430037004500	430037004500	445040505100
Weight(T)	40	75	100	120	150

High Efficiency Mineral Processing Equipment Electromagentic Vertical Ring Separator

Application scope:

It is used to purity the non-metallic minerals and separate the low intensity magentic mienrals. The non-metallic minerals includes quartz, feldspar, nepheline, fluorite, spodumene, kaolin. The low intensity magentic minerals includes hematite, limentite, wolframite and tantalum-niobium ores.

Product Tags:

mineral processing plant

feldspar processing plant

Quality High Efficiency Mineral Processing Equipment Electromagentic Vertical Ring Separator for sale

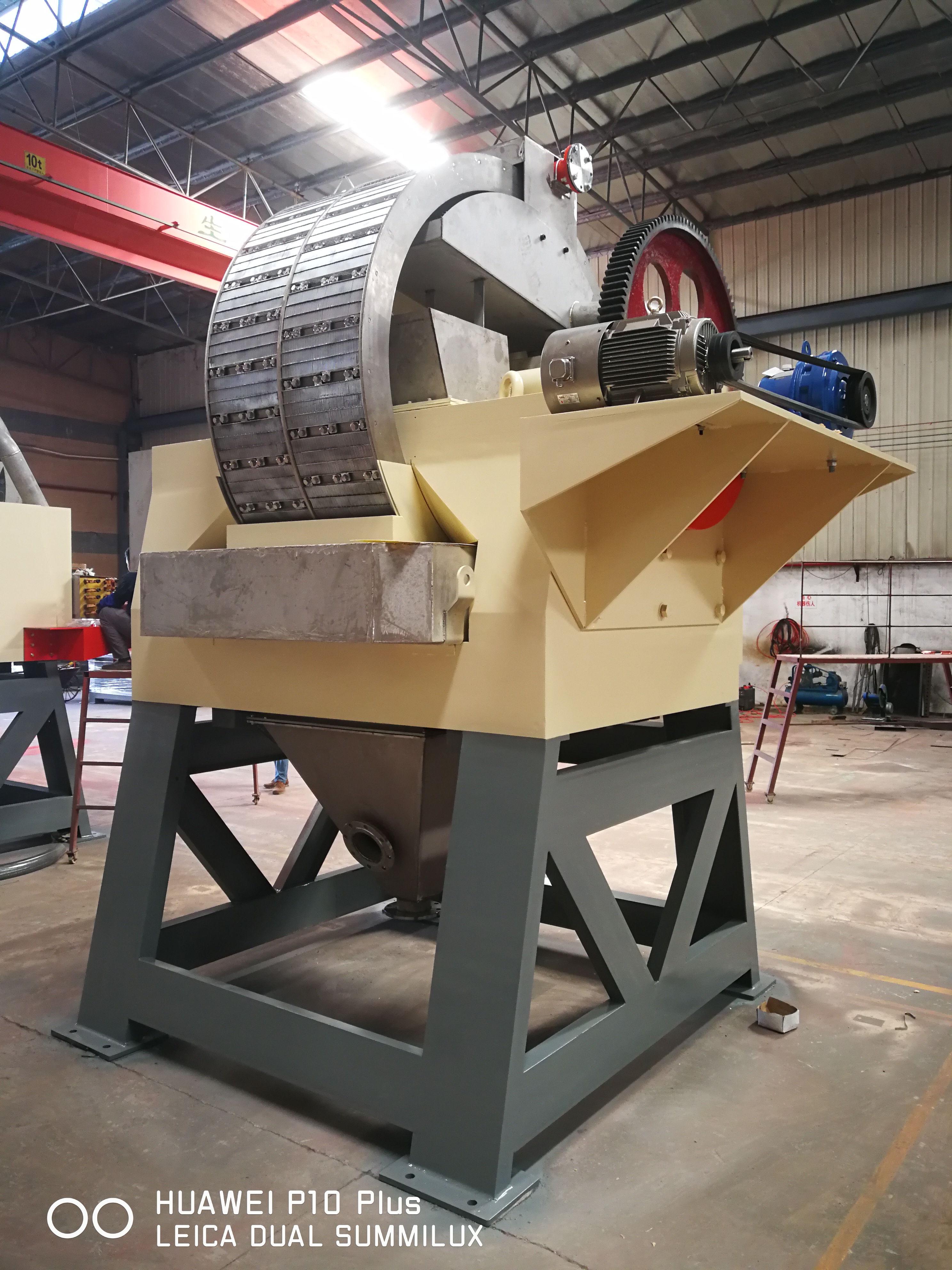

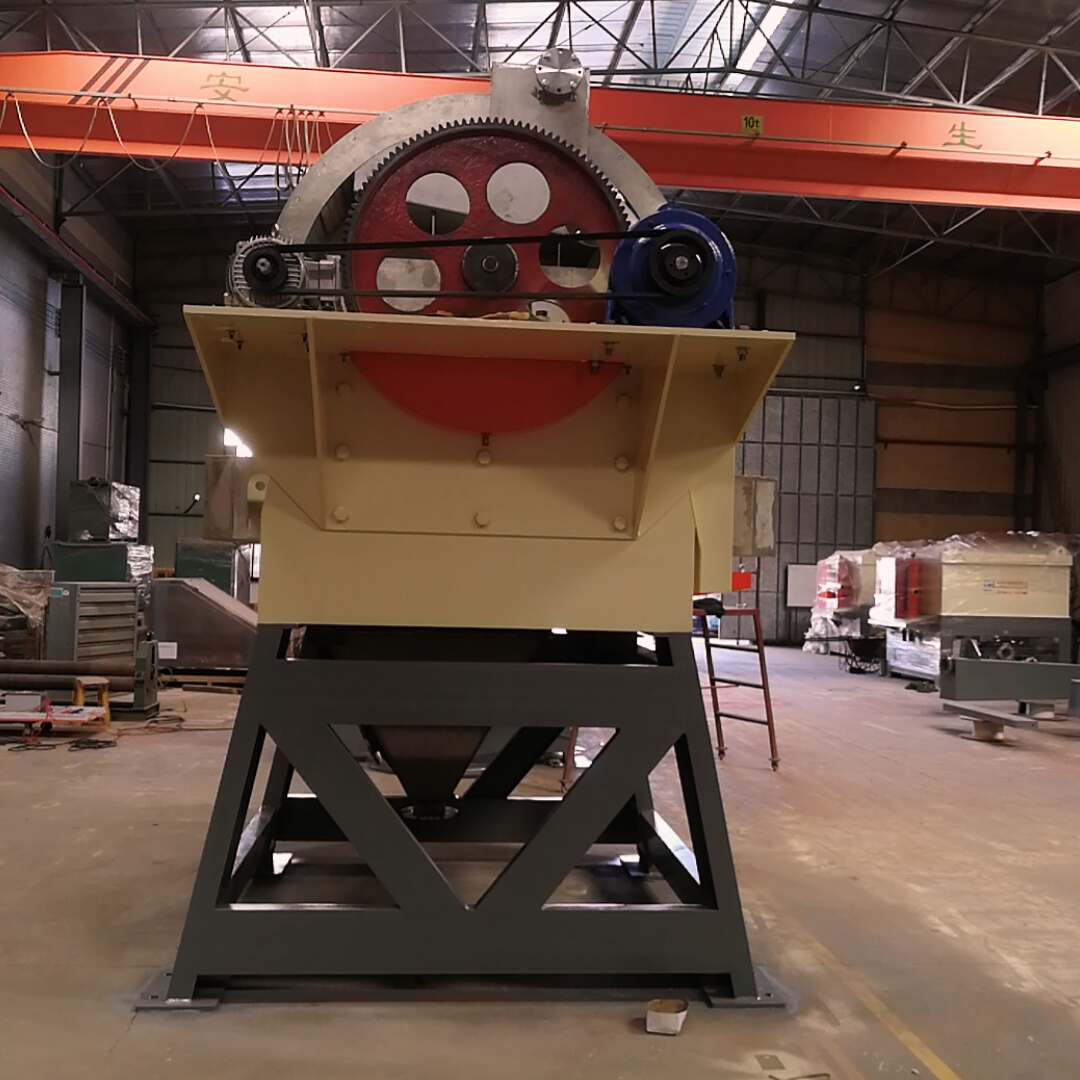

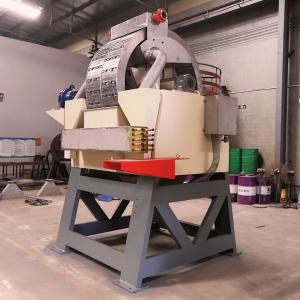

High Efficiency Mineral Processing Equipment Electromagentic Vertical Ring Separator Images
